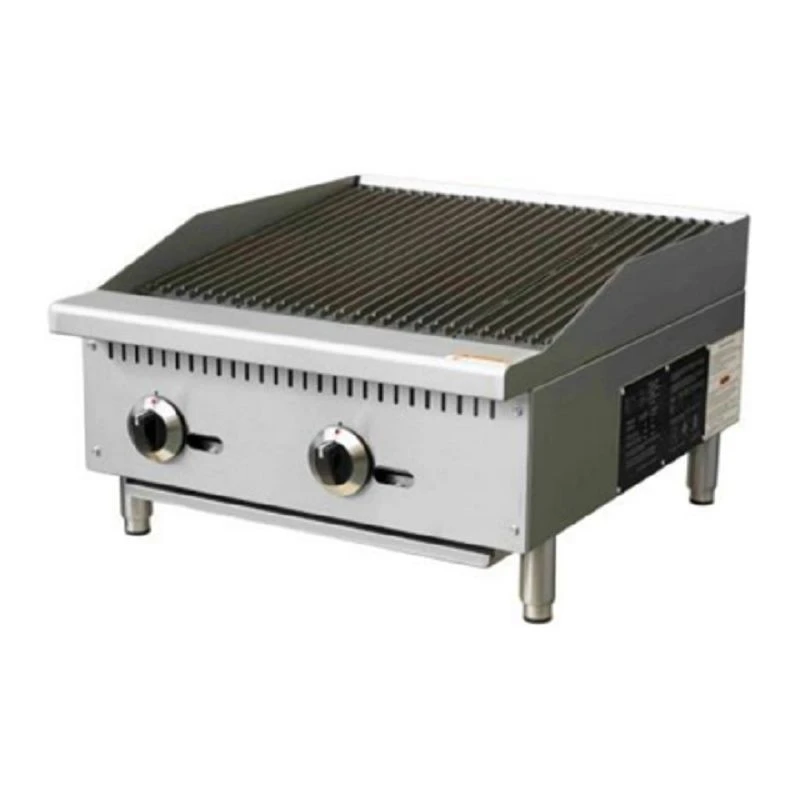

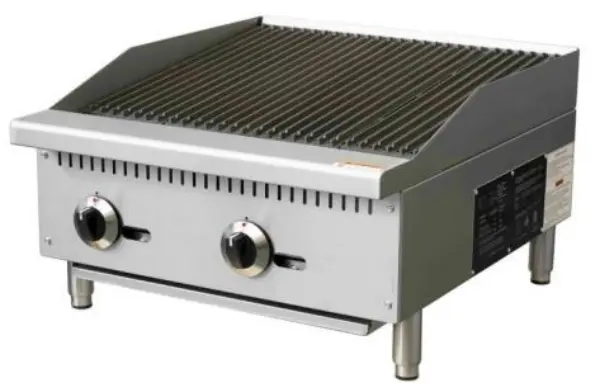

Charbroiler Commercial

● "U" shape burners provide even heat distribution each 12".

● Adjustable pilot light lit from front of unit.

● Cast iron grates are reversible for level or inclined broiling positions.

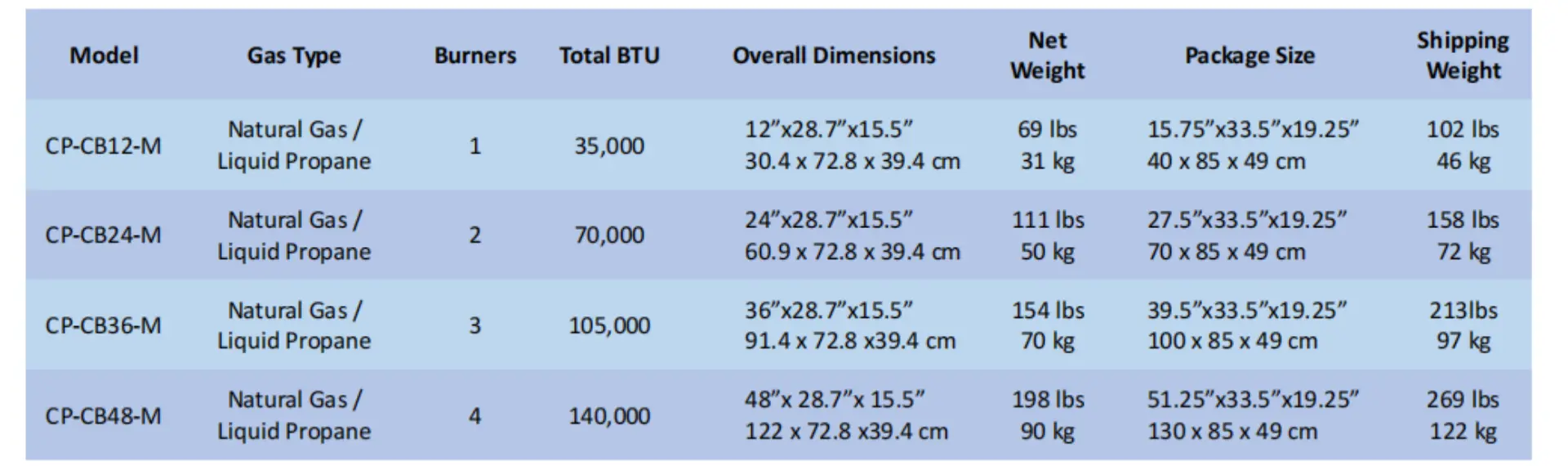

● 35,000 BTU / burner.

● Stainless steel cabinet.

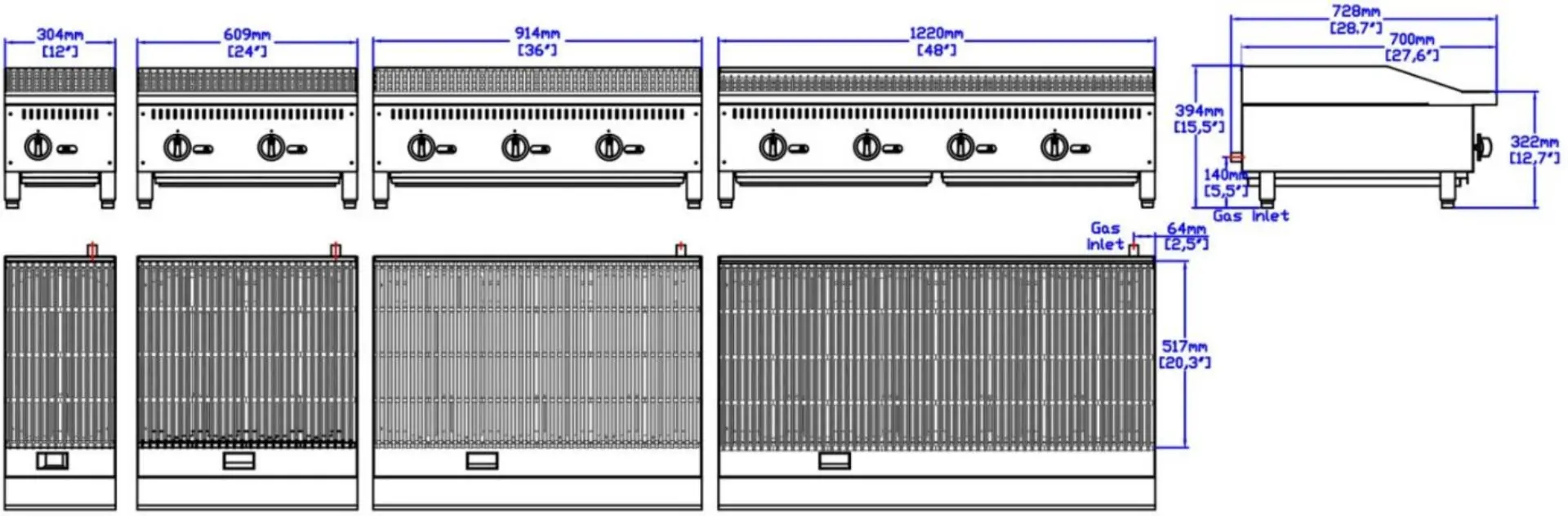

● Widths: 12", 24", 36", 48".

● Cool-to-the-touch" front s/s edge.

● Adjustable stainless steel legs, non-skid feet.

● Easy to remove full width crumb tray.

● Shipped standard Natural gas, LP conversion kit included.

● This appliance is manufactured for commercial installation only, not intended for home use.

● 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI).

● Natural gas operating pressure - 4.0" W.C. Recommended supply pressure 7-9" W.C.

● Propane gas operating pressure - 10.0" W.C. Recommended supply pressure 11-12" W.C.

● A gas pressure regulator supplied with unit must be installed.

● An adequate ventilation system is required for Commercial Cooking Equipment.

● Require a 6" clearance at both side and rear adjacent to combustible construction.

● CSA design certified NSF listed.

● CE certified Charbroiler Commercial Use.
